For making larger diameter size of rope

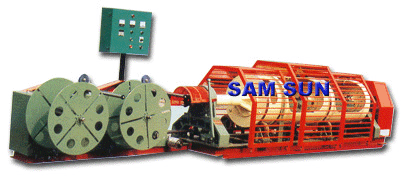

Tube Layer Rope making machine - T model



T24 Tube Layer Rope making machine Specifications
available rope diameter from 16mm to 24mm

Tube Layer
Bobbin size (mm)
Motor (V.S.)
R.P.M.
Rope Dies/set (mm)
Change Gear
Dimension (M)

1 Lot
D 560 x L 450
6P/11kw
200 - 300
16 - 24
10 sets
L 8.5 x W 1.4 x H 1.2

Strander (2 Heads)
Motor (V.S.)
R.P.M.
No. of Bobbin
Strand Dies/set (mm)
Change Gear
Dimension (M)

1 Lot
6P/11kw x 2
300 - 370
9
16 - 24
10 sets
L 4.9 x W 1.2 x H1.1 x 2

Container Loading : 3 x20FT



T30 Tube Layer Rope making machine Specifications
available rope diameter from 20mm to 28mm

Tube Layer
Bobbin size
No. of Bobbin
Motor (V.S.)
R.P.M.
Hoister(1000kg)
Rope Dies(mm)
Change Gear
Capacity(100%)
Dimension (M)

1 Lot
D 24" x L 19"
9
15kw
180 - 230
2
20 - 28
5 sets
1300kgs - 2800kgs/8hrs
L 8.5 x W 1.4 x H 1.5

Strander (2 Heads)
Motor (V.S.)
R.P.M.
Back creel stand
Dimension (M)

1 Lot
11kw x 2
300 - 450
100 creel pins
L 3.5 x W 1.2 x H1.3 x 2

Container Loading : 3 x20FT

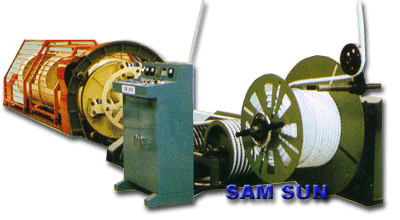

T34 Tube Layer Rope making machine
available rope diameter from 26mm to 34mm

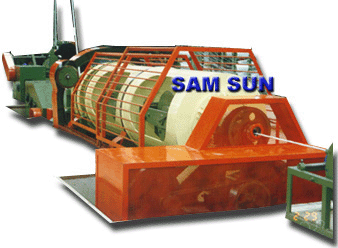

T38 Tube Layer Rope making machine
available rope diameter from 30mm to 38mm


........................................................................................................................................................
Rope making machine specifications
PP Danline Extruder system specification

machine photo
