12 strands braid rope making machine


available rope range  Dia. 40-100mm


Rope making machine specifications      PP Danline Extruder system specification



Specification

SS100

  available rope range


a. Rope Closer
  Motor (Inverter)
  RPM
  Bobbin Size (mm)
  Take-up Flange size
  Capacity (100%)
  Dimension (M)

  b. Strander (2 Heads)
  Motor(Inverter)
  RPM

  Back Creel Stand
  Dimension(M)

Dia. 40-100mm

1 unit (12 Carriers)
15 kw
15-20
D560 x L900/26 unit
D1950 x L1100
1700kg ~ 5000kg/8hrs
L11.5 x W7.4 x H6.85


15kw x 2
50 ~ 110
220 creels
L14.2 x W3.4 x H1.7

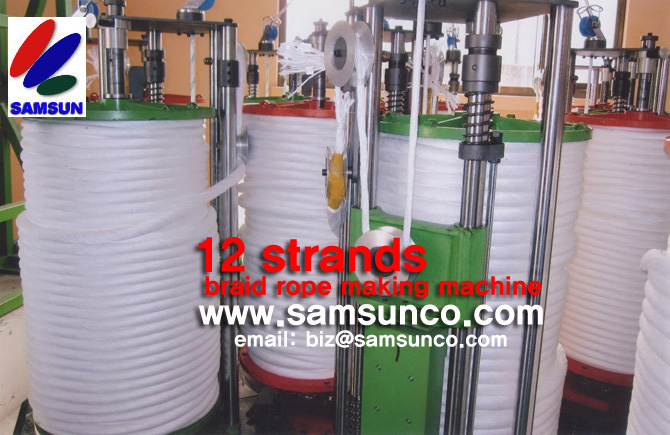

 machine photo
