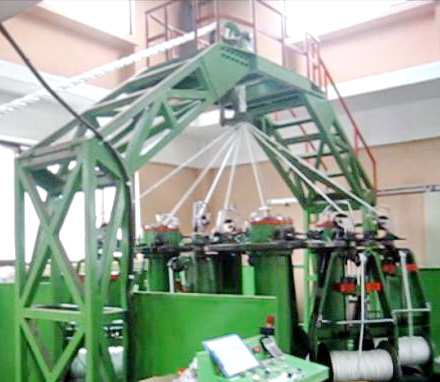

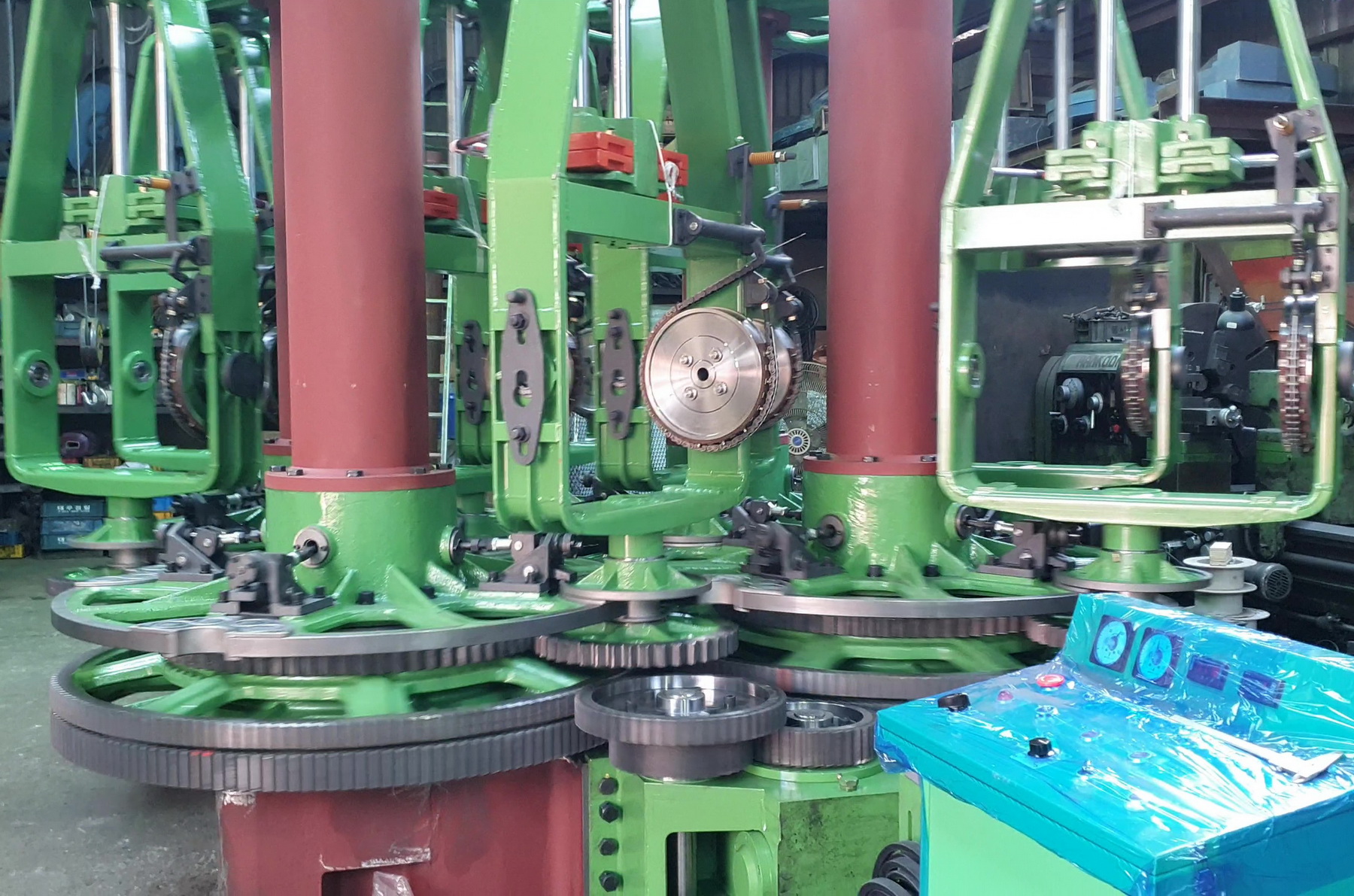

8 strands braid rope making machine








Specification & Dimension

SS45

SS75

SS100

   Available Range of Rope Size (Length 220M)
   Horn Diameter
   Horn Disc Rotation
   Main Motor
   Method of Speed Variation
   Number of Bobbin Carrier
   Strand Bobbin Size (mm) (Dia. x Length)
   Take-up Bobbin Size (mm)
   Net Weight of Machine

26-45mm
1,235mm
30~40rpm
7.5kw(4P)
Stepless
8
430x430
1,100x925
15,600kg

40-75mm
1,457mm
15~25rpm
11kw(4P)
Stepless
8
570x700
1,770x1,100
36,500kg

50-100mm
1,945mm
12~16rpm
15kw(4P)
Stepless
8
740x740
1,950x1,100
45,000kg

      Easy Operation

Bobbin change is simple.
Easy to adjust the tension on each bobbin.
Position of rope-dies can be easily adjusted.
Gears for alternating rope pitch can be easily changed.
